The New Beetle-RS (Roadster Sport)
.
Original Kit: Revell Snap 7106
Date Started: 03 June 2004
.Date Finished: 21 August 2004
Page  4  of 6

August 01, 2004:

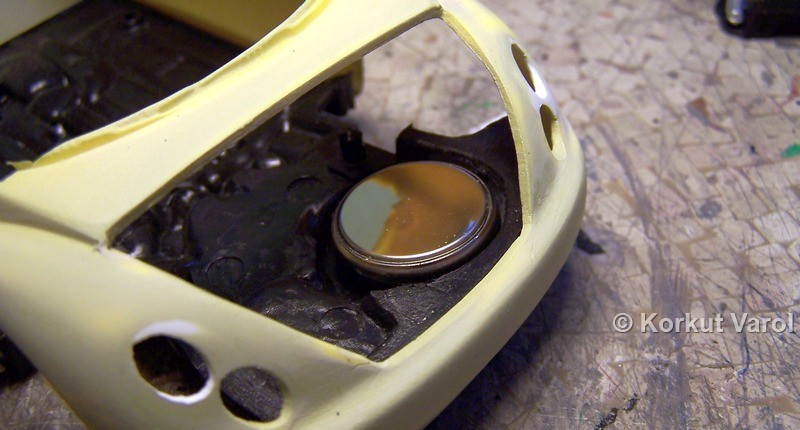

For the battery, I needed a 3V supply to drive the LEDs. I found a flat watch battery that went into the spare wheel area. What a nice fit!

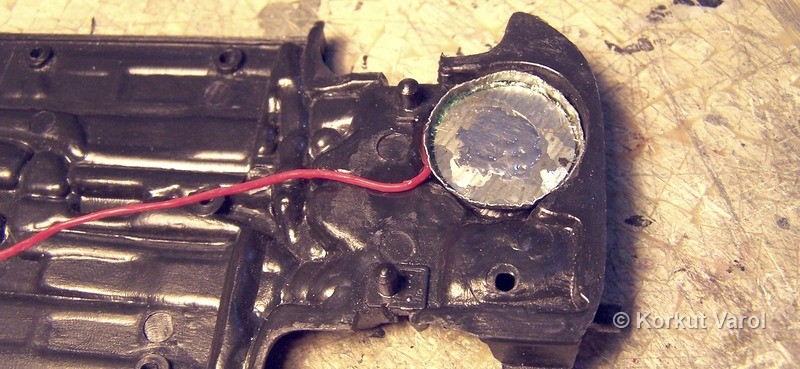

I prepared the housing (+) for the battery from 0.5 mm thick galvanized steel sheet and to maintain good contact, I applied a layer of solder on the inside. Then I soldered the main (+) wire to the bottom and fixed the housing with epoxy glue.

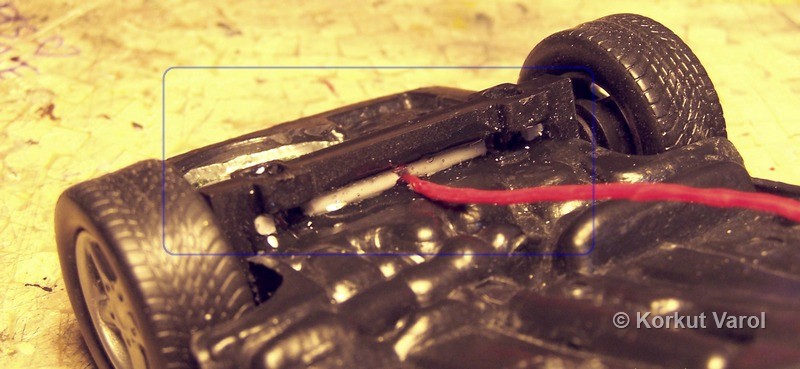

To continue with the rest of the boot inside, I had to fix the rear "axle". I adjusted the ride height with styrene blocks and fixed the axle with epoxy glue.

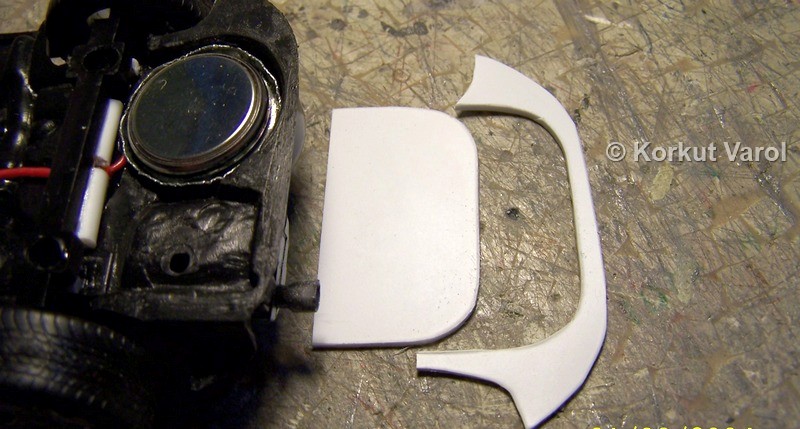

I prepared the boot bottom panel and battery access lid from styrene sheet.

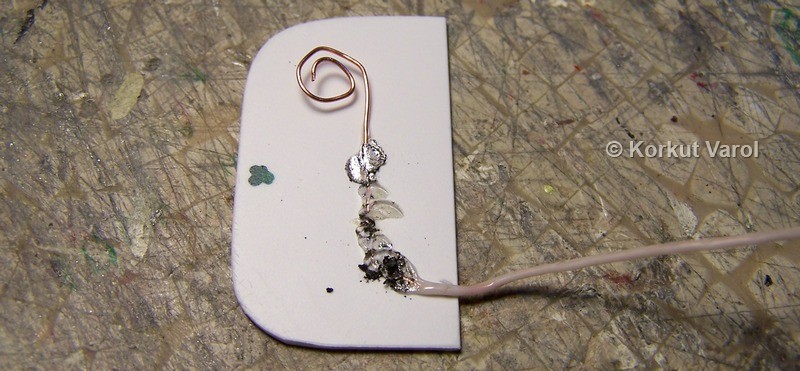

I bent a copper wire and fixed it as shown on the underside of the lid.

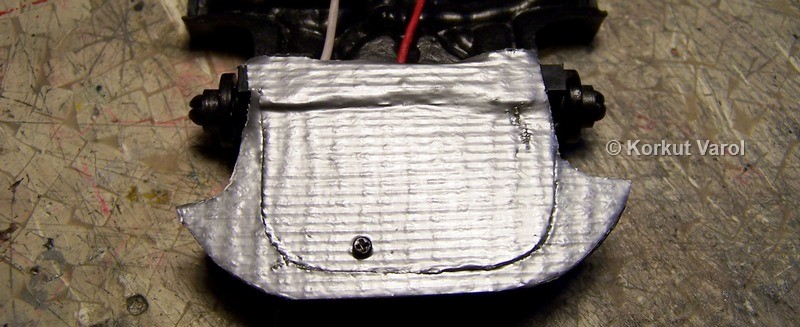

I covered the whole with Duck tape to serve as a hinge as well. A tiny screw holds the lid pressed on the battery.

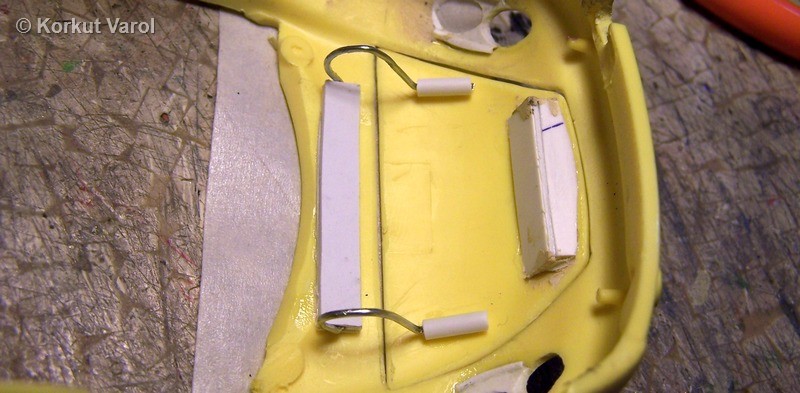

Now to the boot hinges. I glued the hinge and the styrene tubings to their places. The boot lid can be taken off anytime.

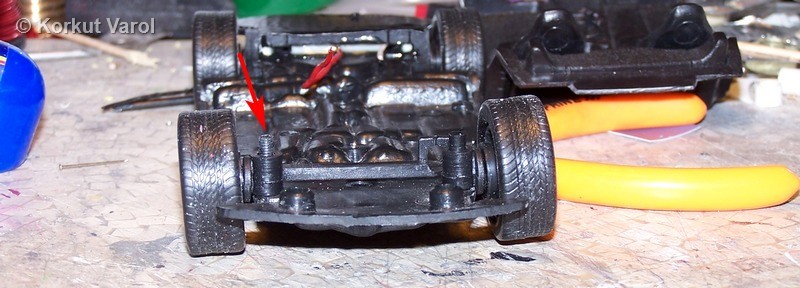

To adjust the front axle ride height, I hand-machined M3 screw threading to the "kingpins".  After adjusting with nuts, I fixed the nuts with CA glue.

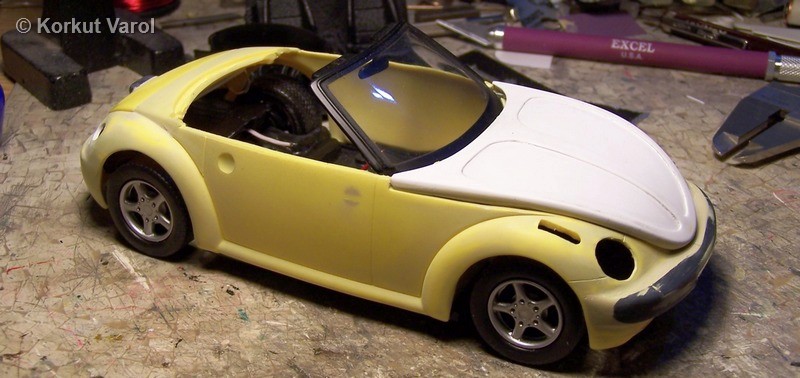

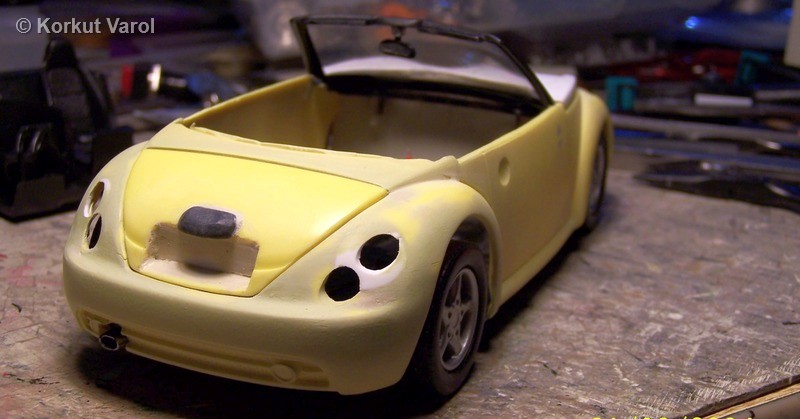

I made a general assembly to check if everything was going alright. Well, I was pleased to see it so!

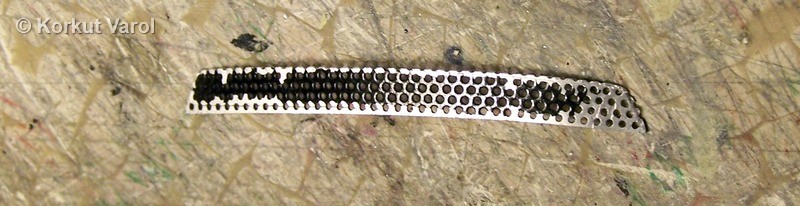

For the front grille, I cut an aluminium piece and bent to suit the curvature. This aluminium piece comes from a tape recorder that I had, dating from 1974! I haven't thrown this metal part away, and after 30 years, I am making use of it... And still I have some more material left for the future!

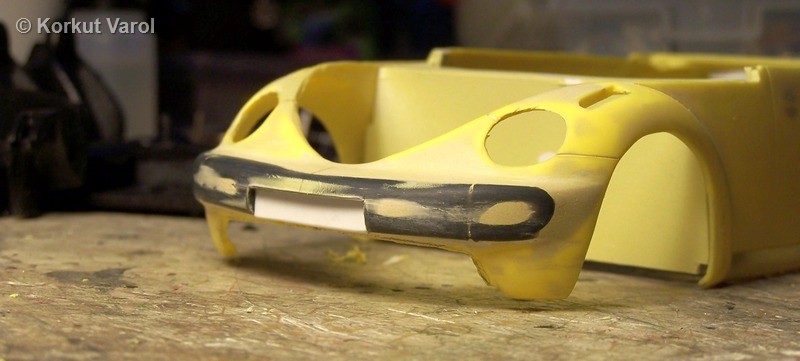

I carved out the front licence plate space in the front bumper and also the space for the front grille. I glued a piece of styrene in the bumper.

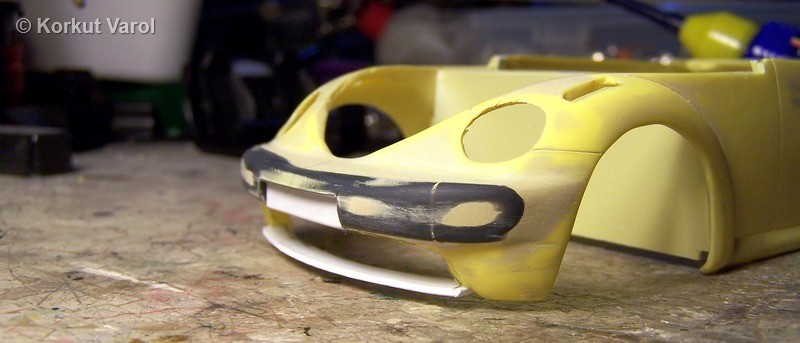

I cut out a styrene part to define the lower edge of the front grille and glued it in place.

August 05, 2004:

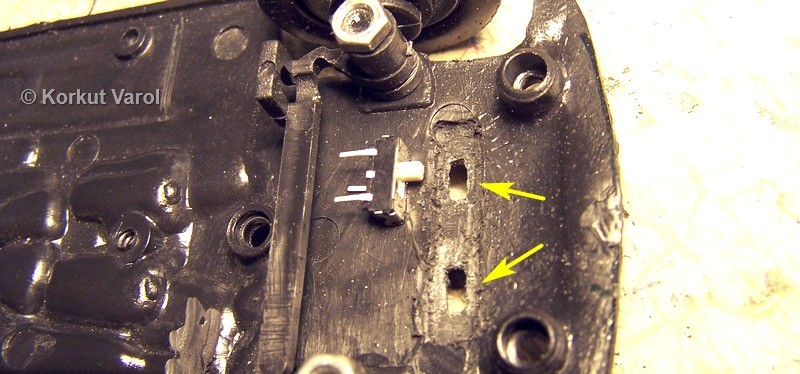

I drilled two openings for installing two microswitches for the head/rear lamps and hazard lamps circuits. I did not want to complicate the system with an extra division for right/left turn signals.

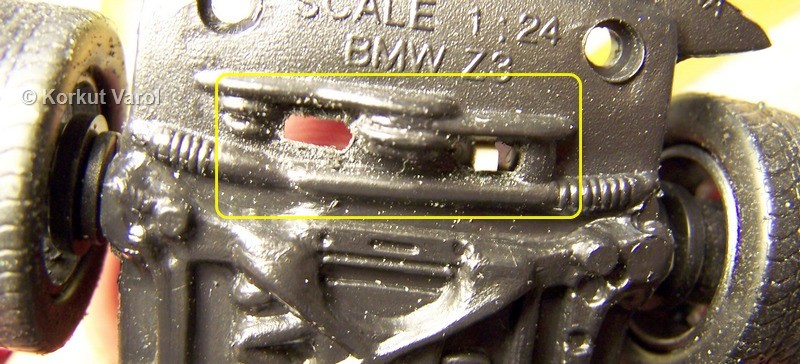

Here the holes are seen from the bottom. They are hidden behind and between pulley/belt imitations.

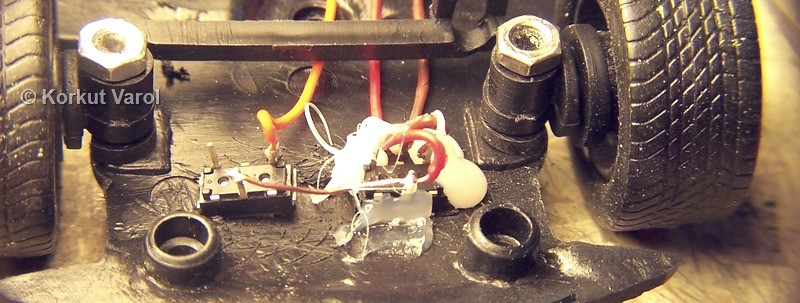

I fixed the microswitches with hot melt glue gun.
August 06, 2004:

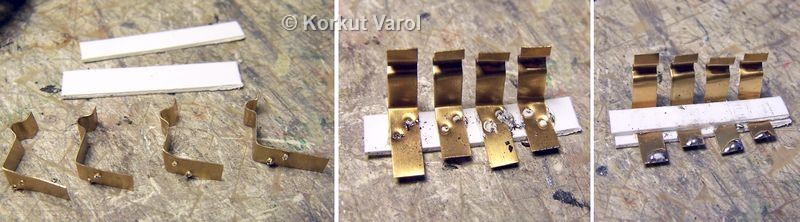

I prepared brass contacts of the chassis, for separation of body and chassis wiring easily. I pressed them into a styrene slab by heating with a soldering gun. I fixed the contacts better with glueing another piece of styrene on top of the former assembly.



....................................................
