The New Beetle-RS
(Roadster Sport)
.
Original Kit: Revell Snap 7106
Date Started: 03 June 2004
.Date Finished: 21 August 2004
Page  5  of 6

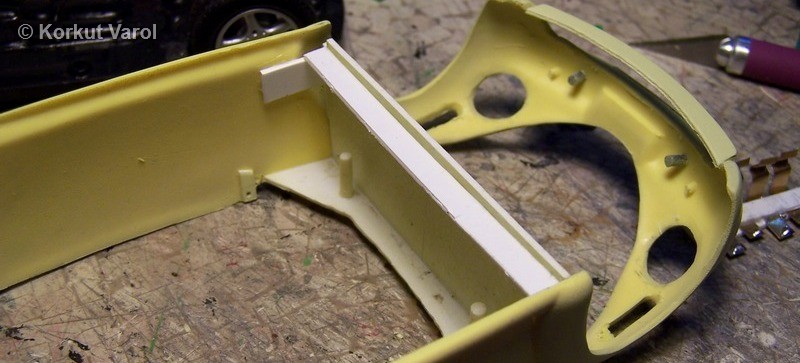

I glued a stiffening element below and behind the firewall to hold the firewall rigid against contacts pressure.

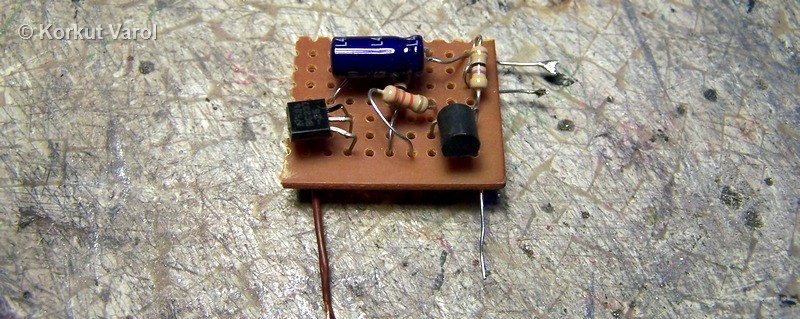

I manufactured the flasher circuit for hazard LEDs.
August 7, 2004 :

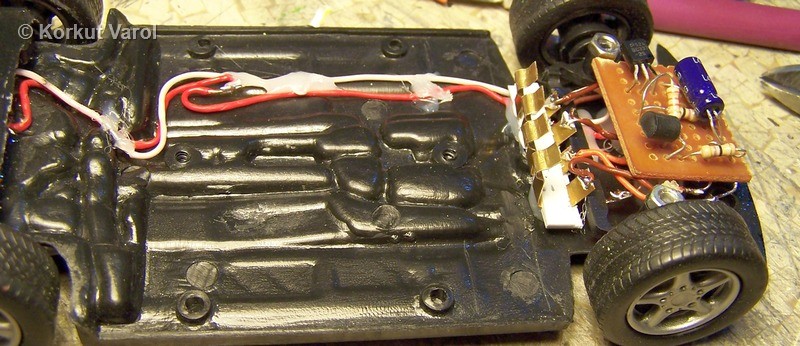

I soldered thecircuit to the contacts and the main wires.

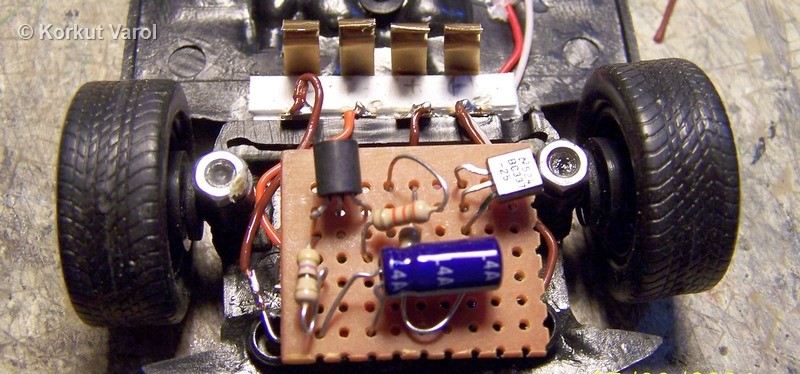

Here is a frontal view of the circuit installation.

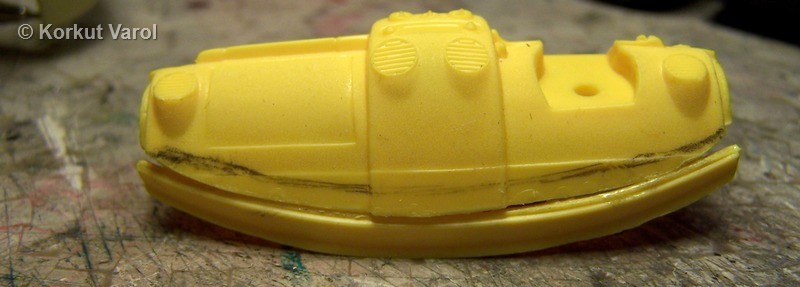

Meanwhile, I jumped to the internal stuff and shortened the dashboard of the Beetle. Then I filled the joint with putty and sanded it smooth.

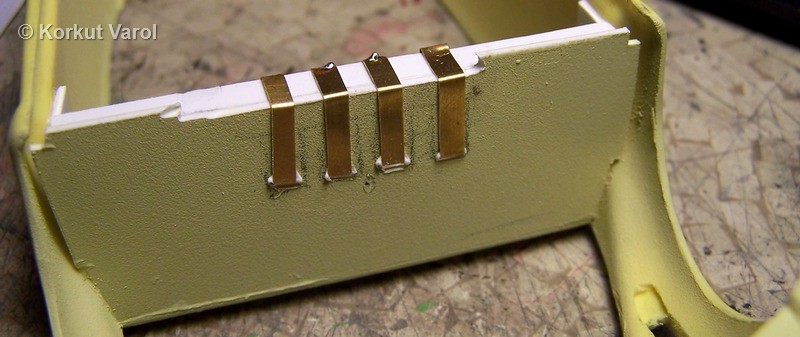

I manufactured the mating parts of the contacts on the firewall. I bent the contacts and heat-sank them into the plastic. Then I bent them around the palstic again, on the back side.
August 8, 2004 :

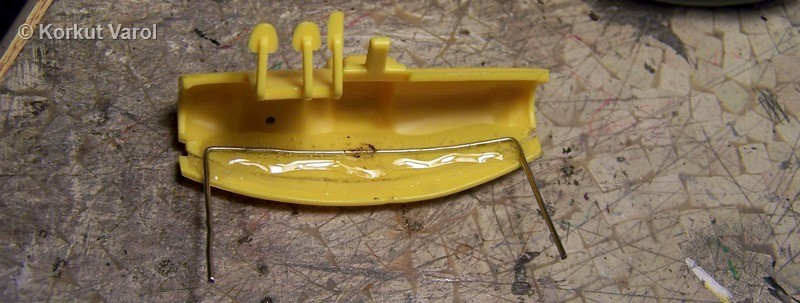

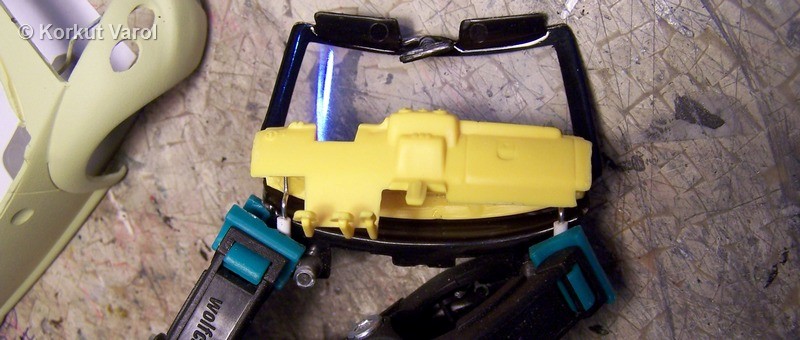

I epoxy-glued a paper clip wire under the dashboard for attaching below the windshield.

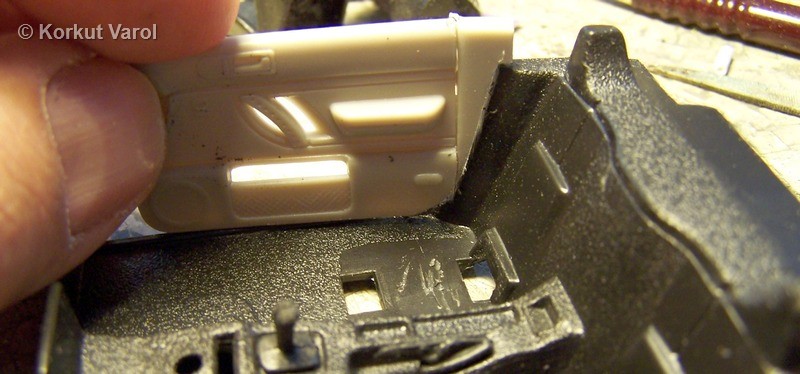

 While letting it cure, I trimmed the door panels to fit the Z3 contours.

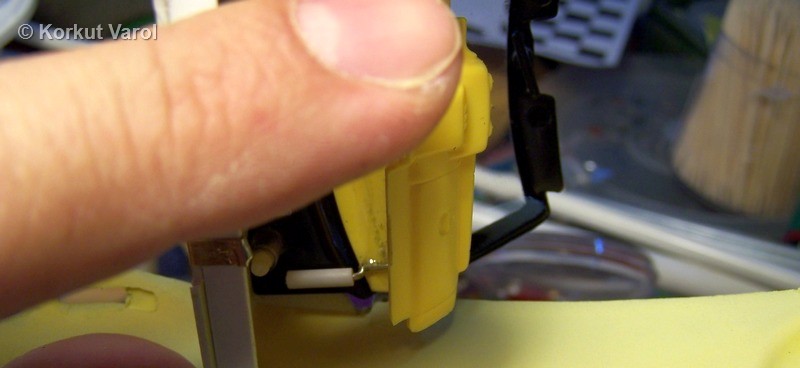

I bent the wire for height adjustment and after repeated tries, I got the final shape.
I put styrene tubing around the wires and glued the tubings below the windshield. This way, I had a removable dashboard.

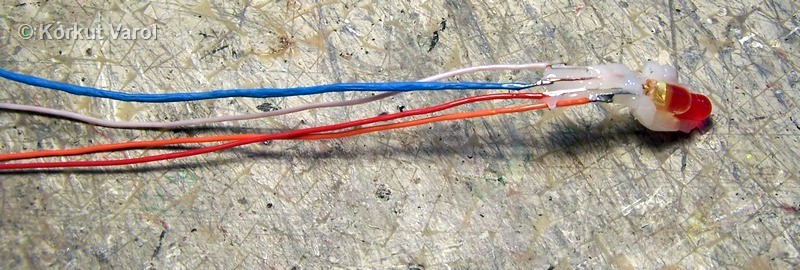

I soldered the wires on the rear lamp groups.
August 11, 2004 :

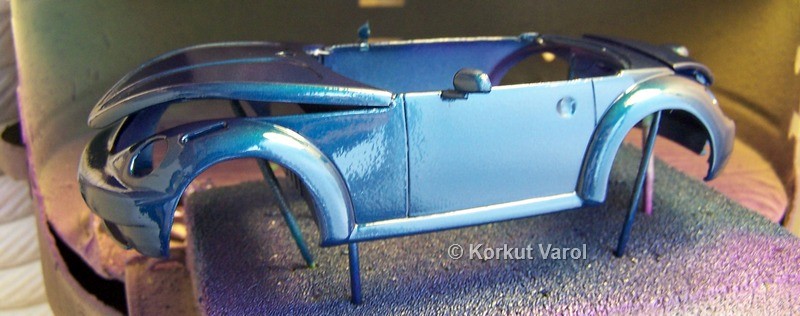

I painted the car with Tamiya X-23 Metallic Blue and applied 4 light coats of clear acrylic.

August 15, 2004 :

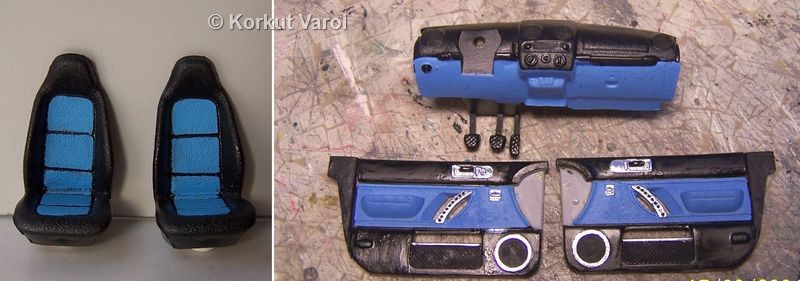

I painted the seat inserts with flat blue.

I treated the interiors with blue-black theme as well. I covered the necessary places of the door panels with BMF.

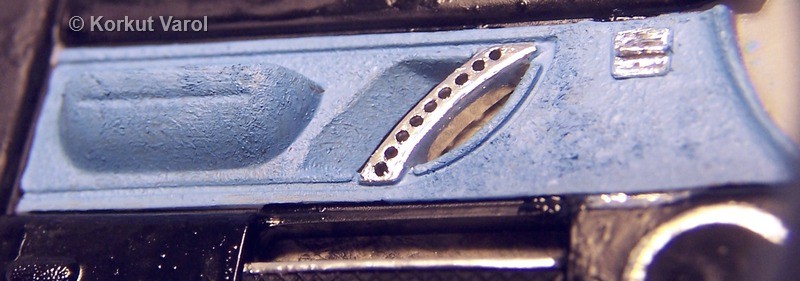

Here is a closeup of the door panel. I drybrushed the paint for better looks. The blue tone looks much different from the above photo. Actually it is somewhere in between. The shade is ModelMaster Flat Light Blue.

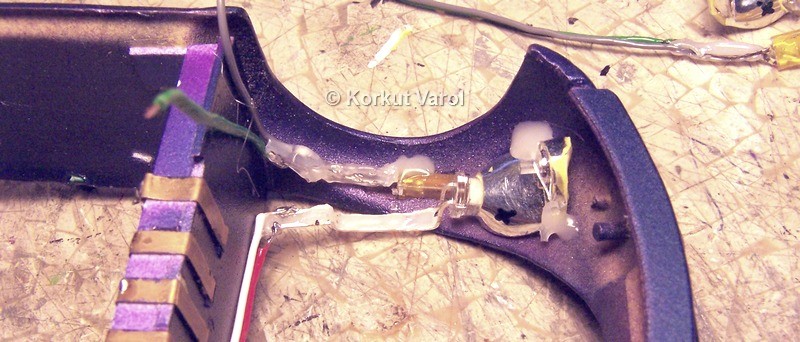

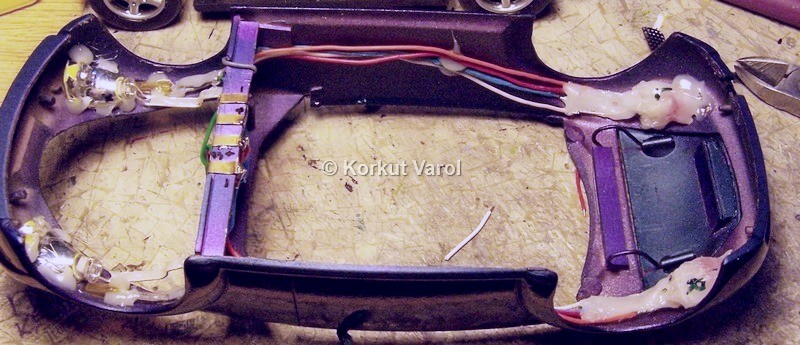

I fixed the LED groups with hot melt glue gun, then went on soldering.
The harnesses are complete now.
